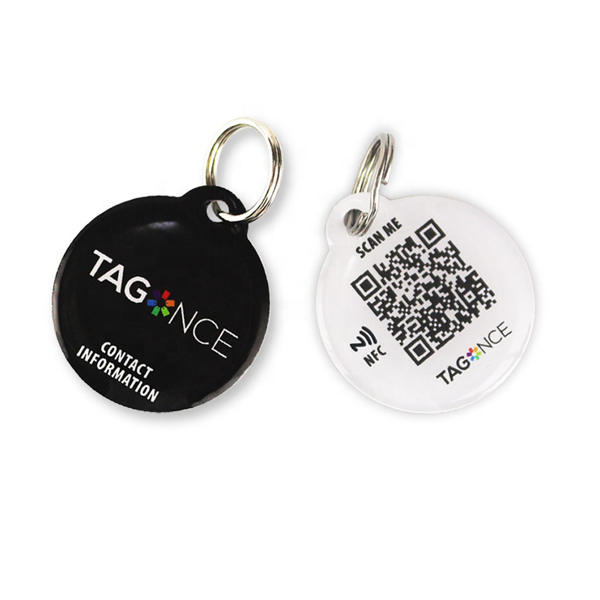

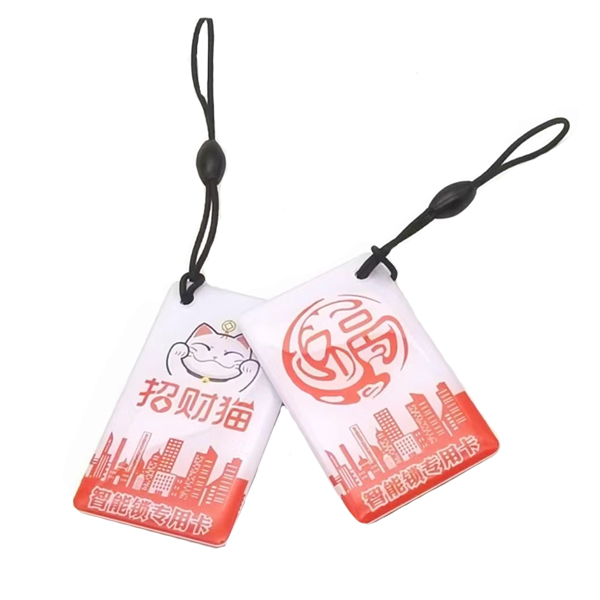

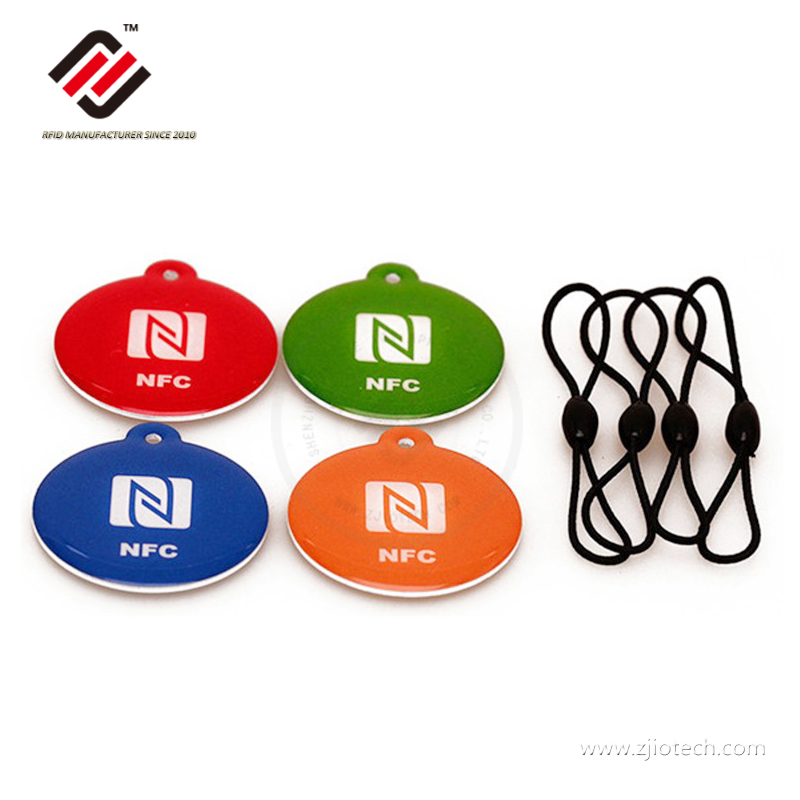

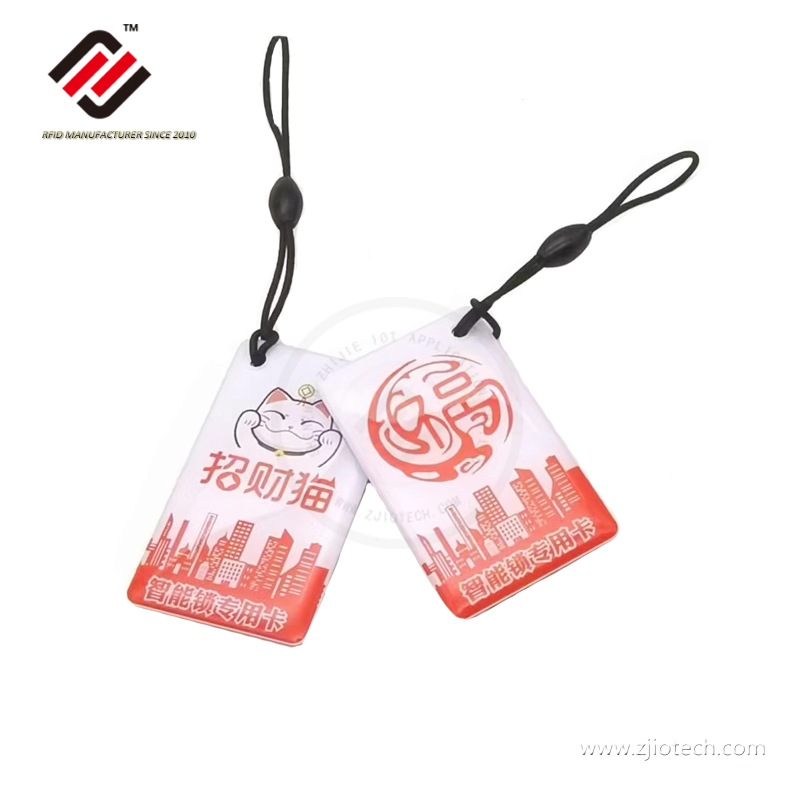

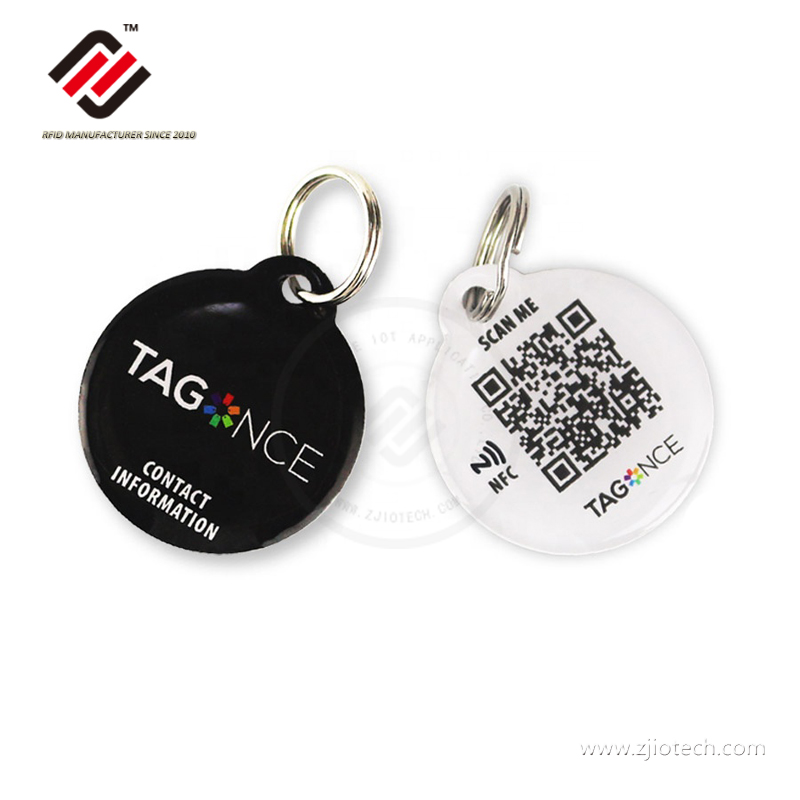

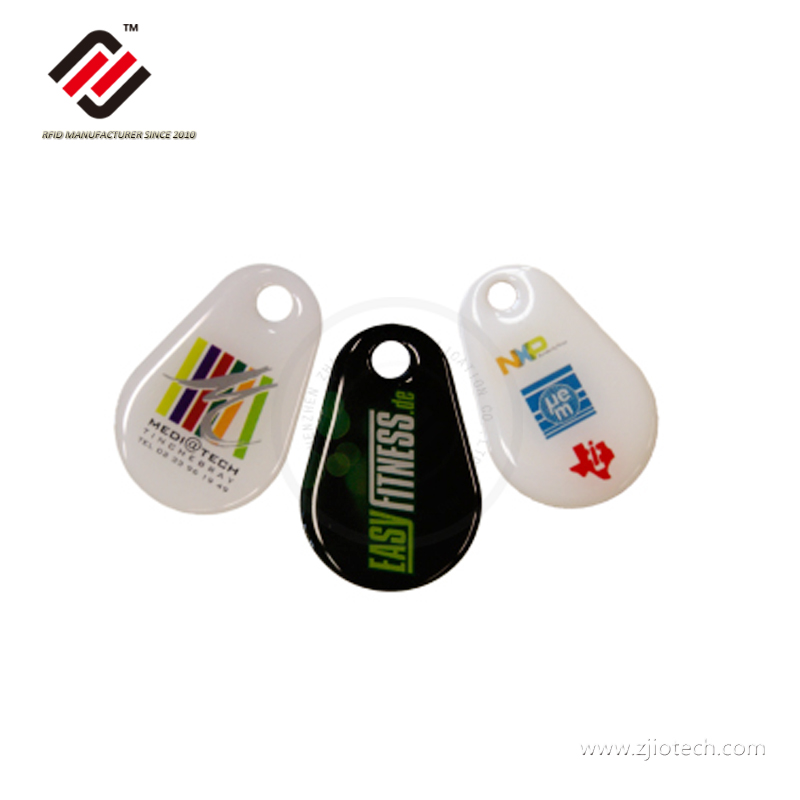

Epoxy HF Hard N-TAG213 NFC Chip Tag

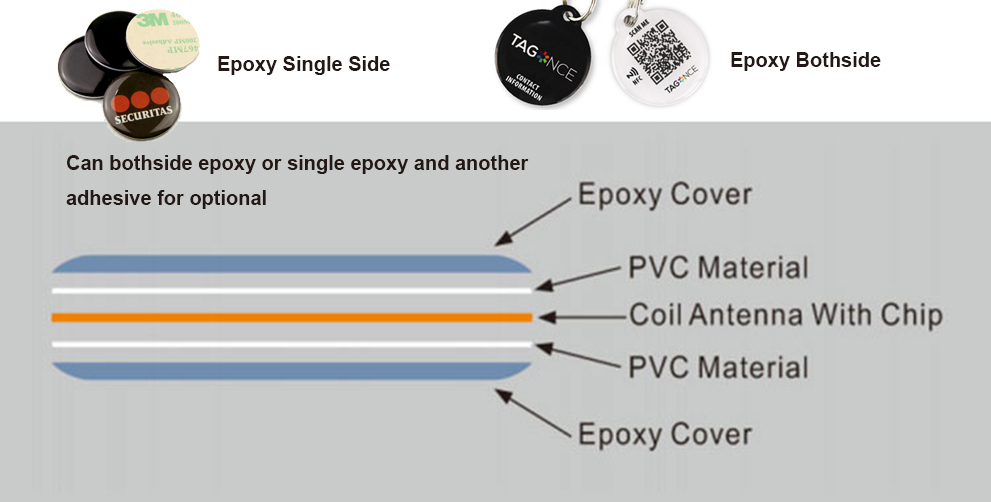

Epoxy HF Hard NFC Tag is hard pvc nfc tag and epoxy resin over pvc material . It can epoxy single side and bothside as optional . Serial number , qr barcode , die-cut shape , encoding ,logomram material is available .They widely use for door control access , transportation payment , object tracking , nfc tags applications .etc .Highly transparency and various of materails can make our nfc tags work in harsh environment and water proof .Backside can make adhesive or anti-metal layer for different kinds of working applications .
Epoxy crystal drops are made of high purity epoxy resin ,curing agent .etc . The solidified products have the characteristics of water resistance and high transparency.It is the important material for protecting the surface of our nfc tags even increasing surface glossy and brightness .
We not only provide 13.56MHz nfc tags with nfc chips , but also can produce with 125KHz , 860-960MHz rfid chipsets . Final epoxy rfid tags can assemble with metal keyring , elastic loop ,etc .individual oppbag package and some certain quantities into inner box then cartons will make good protection and safe shipping for your esteemed projects .
Get instant support and customized quotes directly via WhatsApp. Click the button to start the conversation now.
Available NFC Type
| TYPE | TYPE 1 | TYPE 2 | TYPE 3 | TYPE 4 | TYPE 5 |
|---|---|---|---|---|---|
| Standard | ISO/IEC 14443A | ISO/IEC 14443A | ISO/IEC 18092 JIS X 6319-4 FELICA | ISO/IEC 14443A ISO/IEC 14443B | ISO/IEC 15693 |
| EPROM | 96 Byte to 2kB | 48 Byte to 2kB | 2kB | 32kB | Highest to 8kB |
| Transmission speed | 106 kbit/s | 106 kbit/s | 212bit/s ,424bit/s | 106bit/s ,212 bit/s ,424 bit/s | 26.48kbit/s |
| R&W | Read& Rewrite | Read& Rewrite | Read& Rewrite | Read& Rewrite | Read& Rewrite |
| Anti-collision | NO | YES | YES | YES | YES |
| Featured Ics | Topaz 512 | Ultralight EV1 , N-tag213/215/216 | Felica | DES-FIRE 2K/4K/8K | I CODE SLIX |
Description & Specifications
Epoxy Hard NFC tag N-TAG213 Chip will fully complain with13.56MHz ISO 14443A/B , ISO/IEC 15693 and ISO/IEC 18000-3 protocol , customized color printing and numbering , encoding , barcode are available.
| Parameter | Details & Options |
|---|---|
| Product | Epoxy HF Hard N-TAG213 NFC Chip Tag |
| Material | Hard PVC or PET with epoxy resin |
| Size | Diameter 25mm . 30mm ,35mm. 30*45mm , 42*26mm ,etc . Customized shape and size are available |
| Surface Finishing | glossy |
| Printing | CMYK full color printing or digital printing |
| Chips Option | I CODE SLIX , N-tag213/215/216 ,etc . another HF chips are available . |
| Memory | 1024bits , 1k byte , 144 bytes , 504 byes . 888 bytes .etc |
| Reading distance | 3-8 cm (depend on reader power and working environment ) |
| Personalization | Serial number, barcode, QR code, encoding, logomram, etc |
| Package | In smaller white box, then in carton |
| Shipment | By Express, by air, by sea |
| Application | metro tag ,pets tags , bus tag , nfc keytags ,etc . |
More Products Reference
Advantage & Manufacturing
Shenzhen ZhiJie IOT Application Co.,Ltd was exprienced rfid products manufacturers China since 2010 , we can help you to produce different kinds of frequency rfid products with 125KHz , 13.56MHz and 860-960MHz passive rfid chip . In our factory we have rfid card workshop , rfid label sticker workshop and some additional crafts card making department such as embossing , magnetic strip , encoding , hot-stamping , barcode ,QC and laboratory testing department . Now we have more 12 sets flip-chip machines and winding antenna machines for meeting large quantities projects for you . Except RFID or NFC cards we also provide our customers keyfobs,high temperature resistant tags , metal card or tags .etc . Reliable and good faith are our business principle for worldwide customers .
Our advantage as below :
1:ISO size and controlled tollerance in card producing .
2:Excellent printing in plastic rfid card , rfid label or paper rfid cards .
3:Strictly in QC procedures and laboratory testing for keeping stablely feature of rfid products
4: Stablely production time and quanlity gurantee for you
5: RoHS certification and in-time response
Applications
13.56MHz On metal Hard PVC RFID or NFC tags also widely use for identity management , metal equipment management ,metal shelf identification ,metal can tracking ,etc .

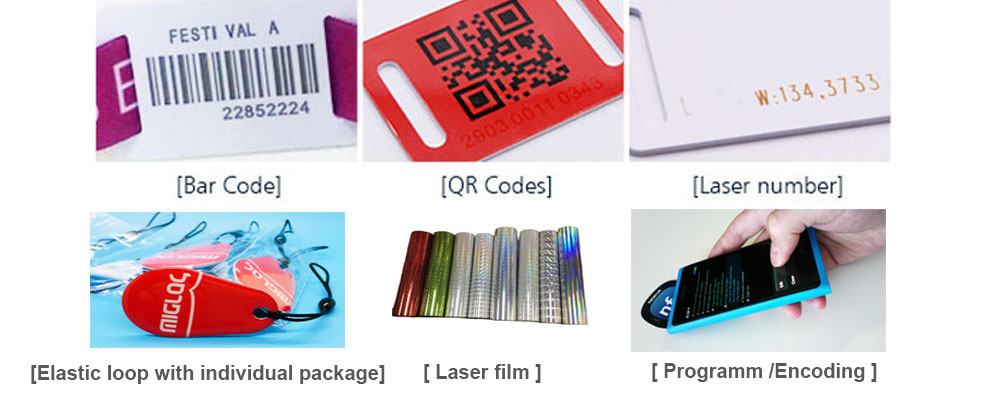

Additional Crafts for Cards
According to demension and shape of on-metal or anti-metal hard pvc nfc tag , you can print linear barcode ,QR barcode ,engraving chip's UID or customized sequential number , encoding links ,data or texture inside ,epoxy surface ,etc .
Package & Shipping Term
We support customer requested shipping term and below specification package will our standard information for reference , final package will depend on certain quantities and size ,shape or another card crafts make right package and carton size . Customized package requested is available .
For shipping we support customers remote pick up goods from our factory with DHL ,UPS , TNT or FedEx collection corrier acfount or shipping with our cooperated agency forwarder is available .
Product FAQ
Q Can Epoxy HF NFC tags work directly on metallic surfaces?
Q How durable are the epoxy tags against outdoor conditions and water exposure?
Q What custom shape, size, and encoding services do you support for OEM orders?
Statement : Pictures above only show the product ,the intellectual property rights of the logo owned by their trademark .
