LF 125KHz Proximity ID Card Inlay RFID Prelam Sheet

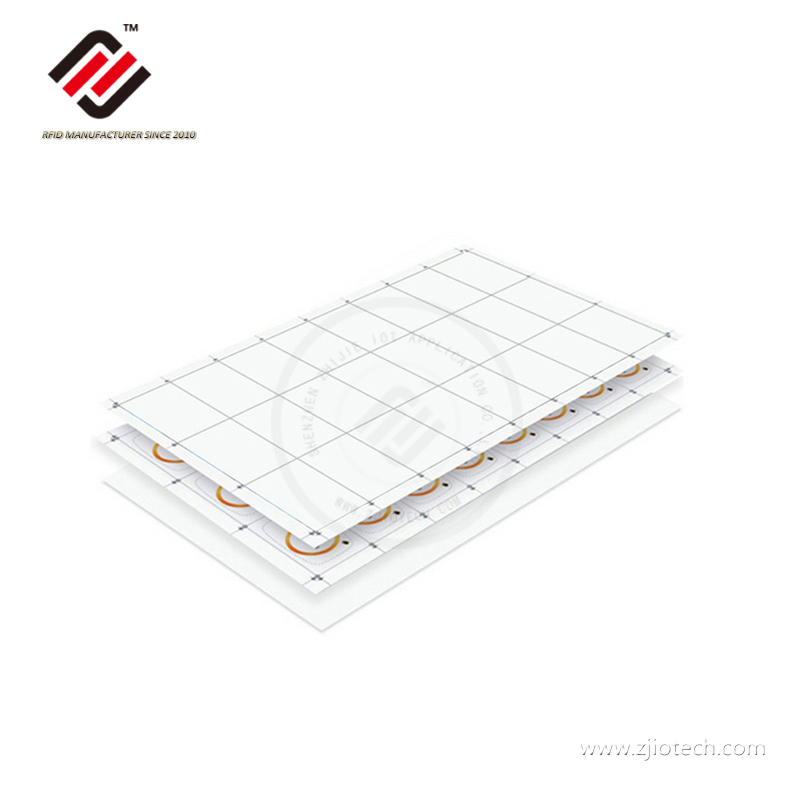

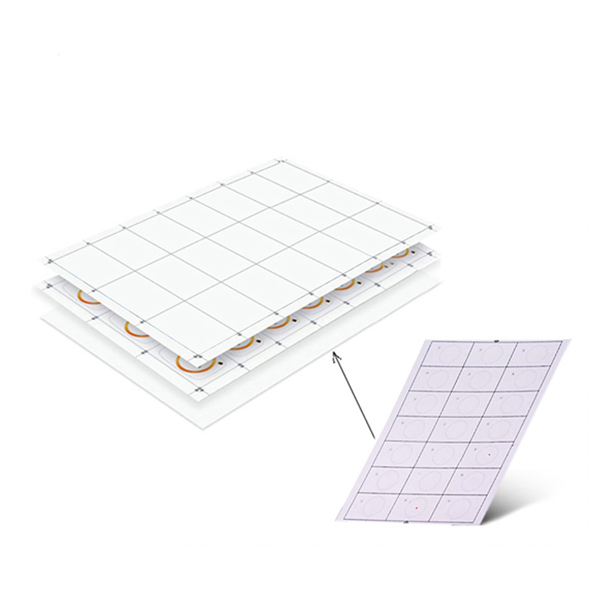

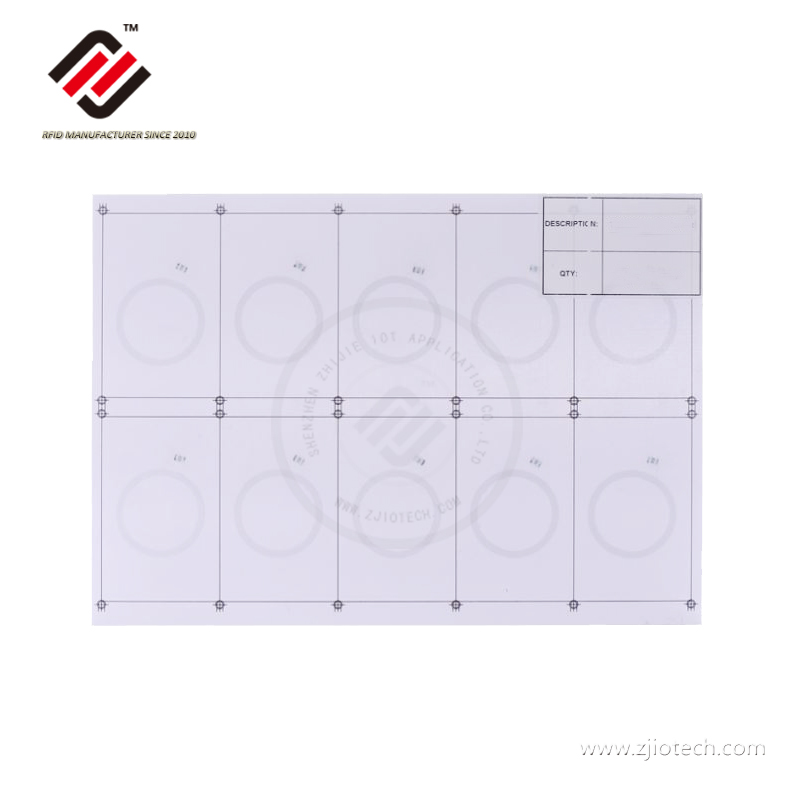

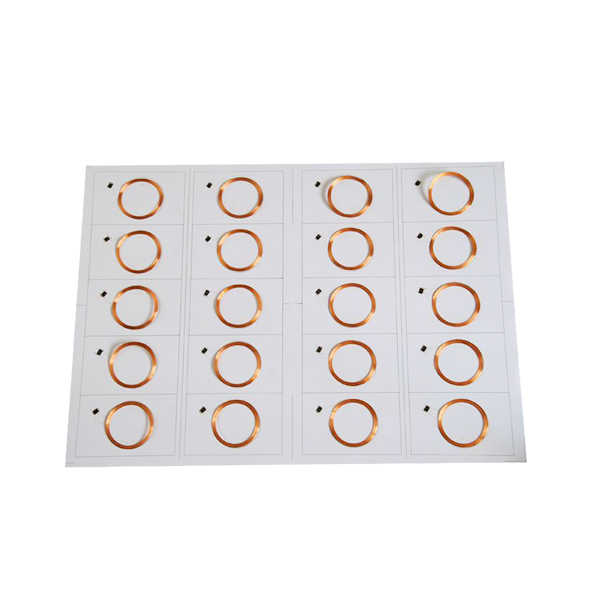

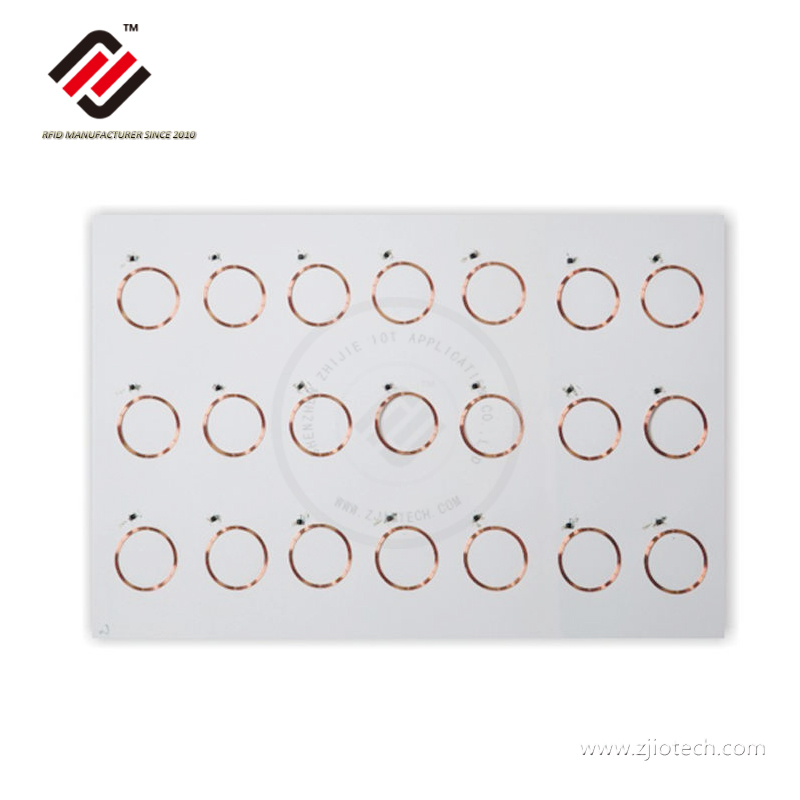

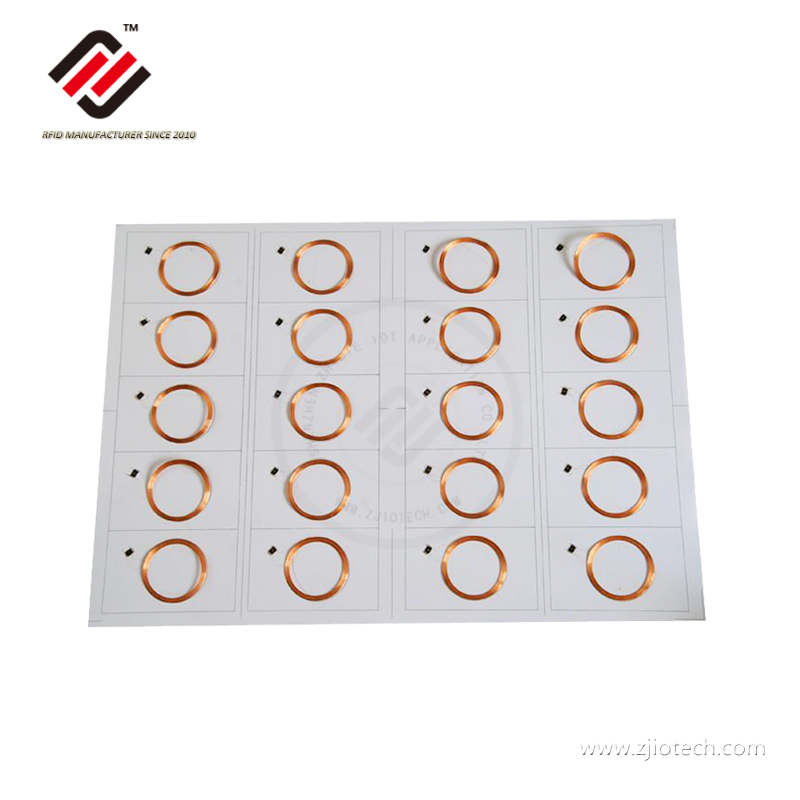

LF 125KHz Proximity ID Card Inlay RFID Prelam Sheet is core part in our rfid card manufacturing processing .It is made of 125khz rfid chip and copper coil antenna with pvc material . Our standard prelam sheet layout will 5x5 version total 25pcs and 305*460mm full size , you also can double check your die-cut machine and customize layout for our reference , normally many irregular size rfid hard tag will use customized layout for lamination final products .
Our rfid prelam sheets use e-co friendly pvc material and butt-welding technology with rfid chips on pvc substrate . the final product widely uses for door control access , identification and hotel keycards ,the total thickness will 0.55-0.6mm because of many copper antenna turns and needing enough frequency . This kind of prelam sheet better for many foreign countries card factories who have equipments and can lamination and die-cut into final rfid cards .
Get instant support and customized quotes directly via WhatsApp. Click the button to start the conversation now.
Description & Specifications
| Parameter | Details & Options |
|---|---|
| Product | LF125KHz Proximity ID Card Inlay RFID Prelam Sheet |
| Material | PVC |
| Size | 305*460mm and custsomized is available |
| Surface Finishing | Matt |
| Printing | White |
| Chips Option | EM4200 , TK4100 , T5577 . EM4305 |
| Memory | 128bits ,64bits . 363bits .etc |
| Reading distance | 2-6cm (depend on reader power and working environment ) |
| Personalization | Customized layout is available |
| Package | bulk in film and then in carton |
| Shipment | By Express, by air, by sea |
| Application | door control access , RFID HOTEL KEYCARD / HOTEL ROOM CARD ,identification ,etc |

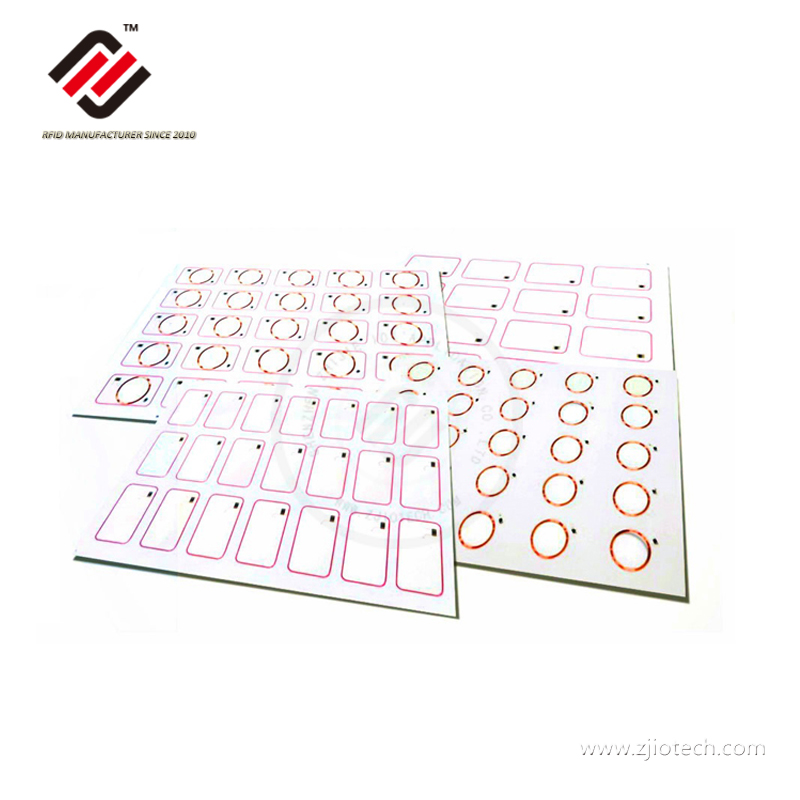

More Products Reference
Advantage & Manufacturing

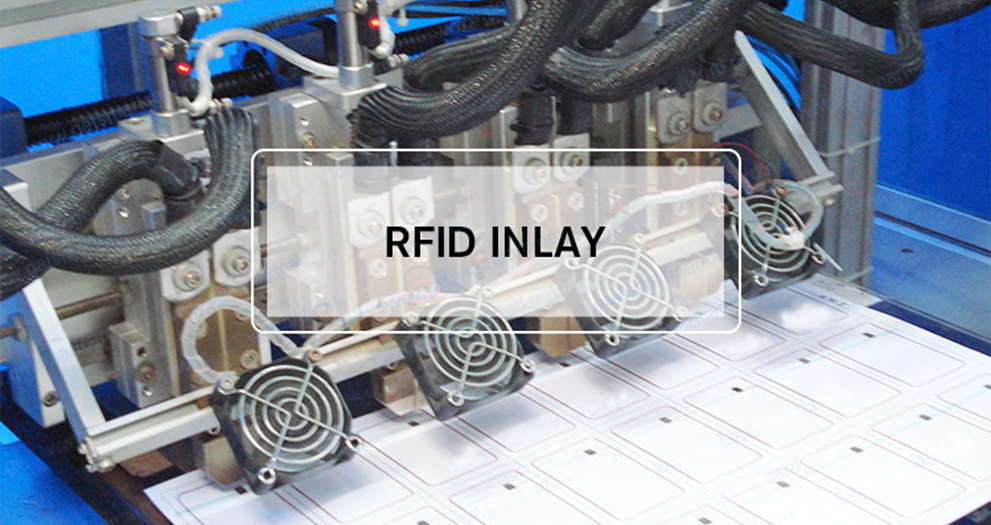

Shenzhen ZhiJie IOT Application Co.,Ltd was exprienced rfid products manufacturers China since 2010 , we can help you to produce different kinds of frequency rfid products with 125KHz , 13.56MHz and 860-960MHz passive rfid chip . In our factory we have rfid card workshop , rfid label sticker workshop and some additional crafts card making department such as embossing , magnetic strip , encoding , hot-stamping , barcode ,QC and laboratory testing department . Now we have more 12 sets flip-chip machines and winding antenna machines for meeting large quantities projects for you .
Our advantage as below :
1:ISO size and controlled tollerance in card producing .
2:Excellent printing in plastic rfid card , rfid label or paper rfid cards .
3:Strictly in QC procedures and laboratory testing for keeping stablely feature of rfid products
4: Stablely production time and quanlity gurantee for you
5: RoHS certification and in-time response
Applications
125Khz RFID prelam sheets widely use for bus card , access control ,hotel locks card , identification , etc , all are passive working without any battery or power supply ,
Additional Crafts for Cards
Our card can meet customers'personalization requested .such as barcode , signature panel ,scrath panel ,encoding ,hole punching ,etc . Droping detailed with your cards producing and we are willing to make good services with our esteemed customers .
Package & Shipping Term
We support customer requested shipping term and below specification package will our standard information for reference , final package will depend on certain quantities and size ,shape or another card crafts make right package and carton size . Customized package requested is available .
For shipping we support customers remote pick up goods from our factory with DHL ,UPS , TNT or FedEx collection corrier acfount or shipping with our cooperated agency forwarder is available .
Product FAQ
Q What standard sheet formats and layouts are available for 125KHz RFID prelam sheets?
Q What chip models are available, and how is the welding quality ensured?
Q What is the thickness range of the prelam sheet to achieve the standard ISO 0.84mm finished card?
