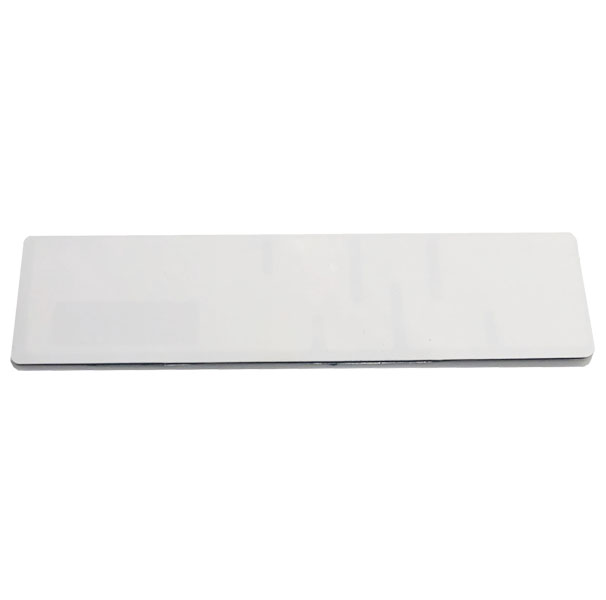

Product Name :902-928MHz UHF Flexible On Metal Sticker MR6 Chip
902-928MHz UHF Flexible On-metal Sticker MR6 Chip is fully compliance with Gen 2 Class 1 and ISO/IEC 18000-6C protocol , normally working temperature is -20℃~65℃ with Impinj Mozar 6 or 6P chip encapsulation . 96 bits TID and 96 bits EPC , 0 bits user memory .(if customer needs user memory for programming can chose H3 or M4QT chipset ) . We can provide paper , softer pvc or pet top material in different working environment such as water proof or out-door harsh conditions . Barcode , serial numbering , TID printing , EPC encoding is available .

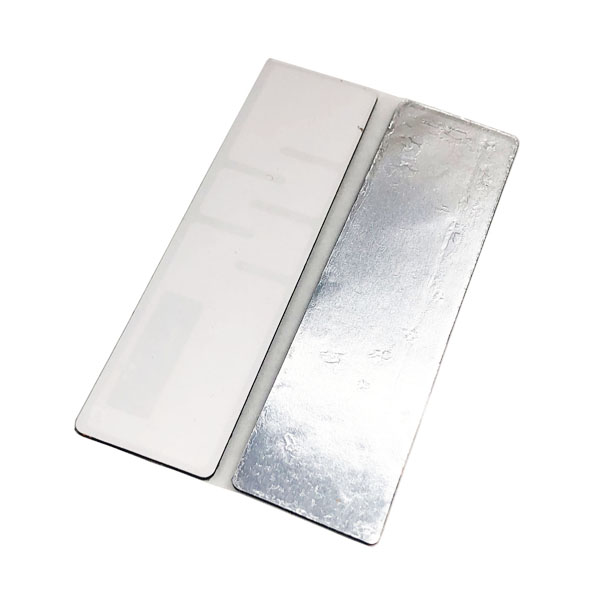

This kind of UHF flexible on-metal sticker is laminated with anti-metal foam material with chip and antenna . can make UHF sticker work normal on metal surface or magnetic field enviroment .50*25mm dimension and 1.2mm thickness flexibility material make them can adheive on curved surface better . reading distance can reach 1-5 meters depend on customer reader power and working environment
Worldwide UHF Frequency Reference :
Description :
902-928MHz UHF Flexible On-metal Sticker MR6 Chip will fully complain with Gen 2 Class 1 and ISO/IEC 18000-6C protocol, customized color and numbering , encoding , barcode are available.
|
Product |
902-928MHz UHF Flexible On-Metal Sticker MR6 Chip |
|
Material |
Paper ,Softer PVC or PET |
|
Size |
50*25mm . customized shape ,size are available |
|
Surface Finishing |
Glossy/Matte |
|
Printing |
CMYK full color printing or digital printing |
|
Chips Option |
Alien H3 ,Impinj M4QT ,M6P , Ucode 8,etc . |
|
Memory |
512bits ,etc . |
|
Reading distance |
1-5 metres for UHF (depend on reader power and working environment ) |
|
Personalization |
Serial number, barcode, QR code, encoding, etc |
|
Package |
bulk in oppbag then in carton |
|
Shipment |
By Express, by air, by sea |
|
Application |
Metal assets management ,logistic container tracking ,electrical equipment management , etc .. |

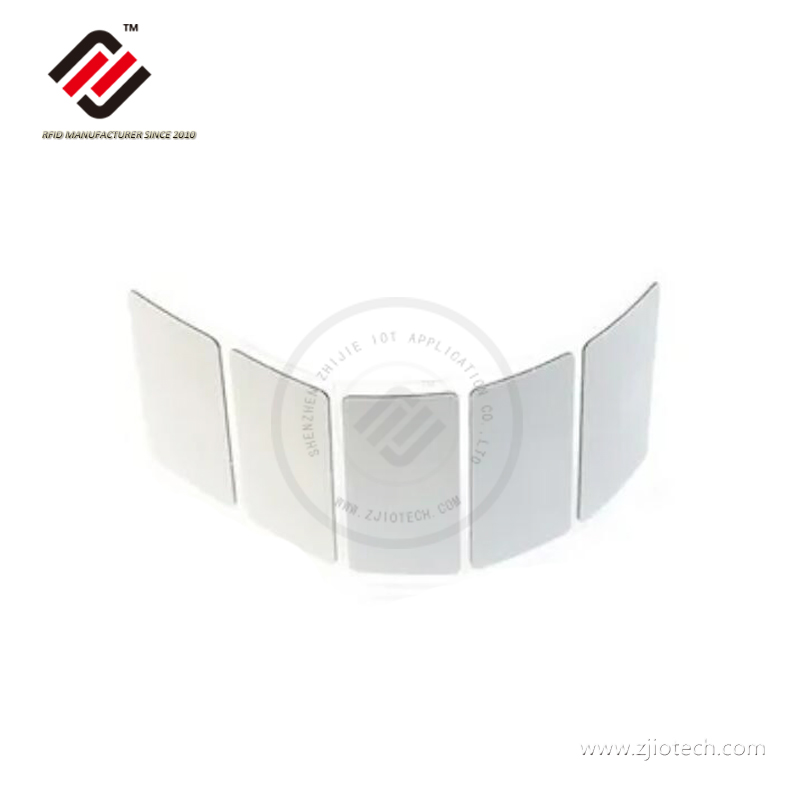

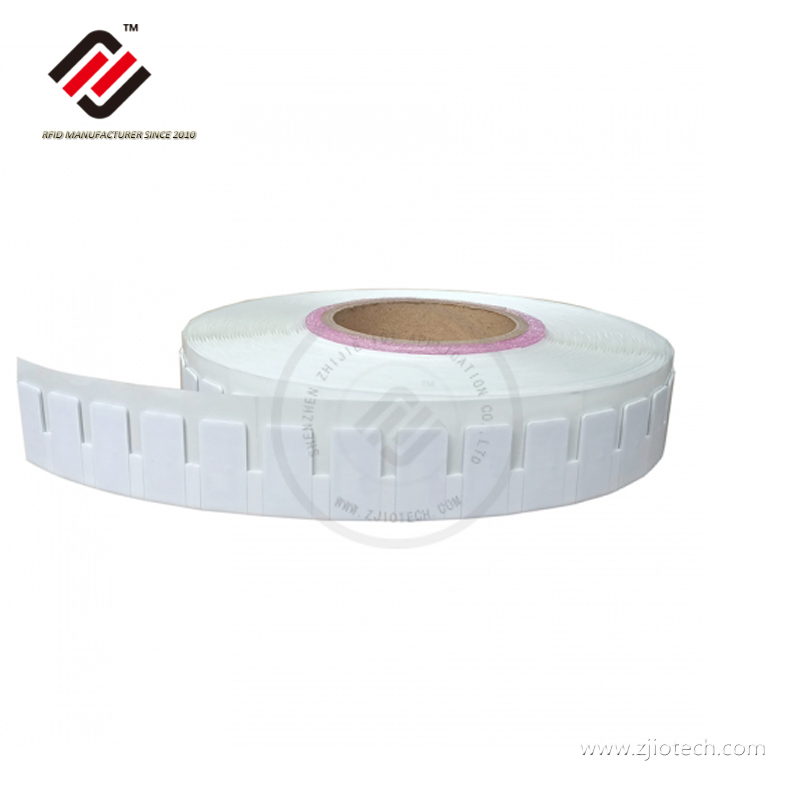

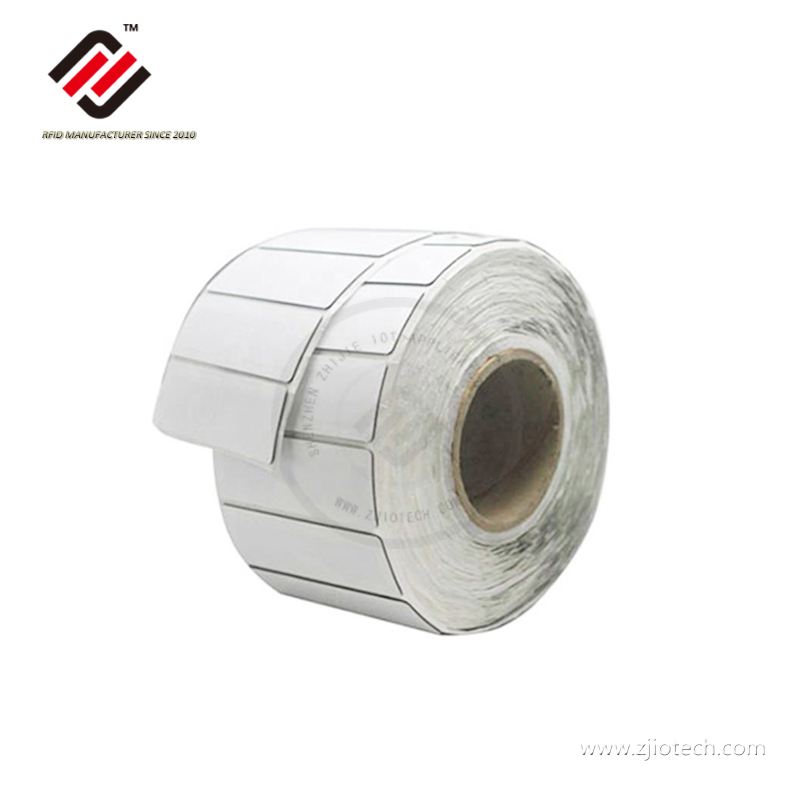

More Products Reference :

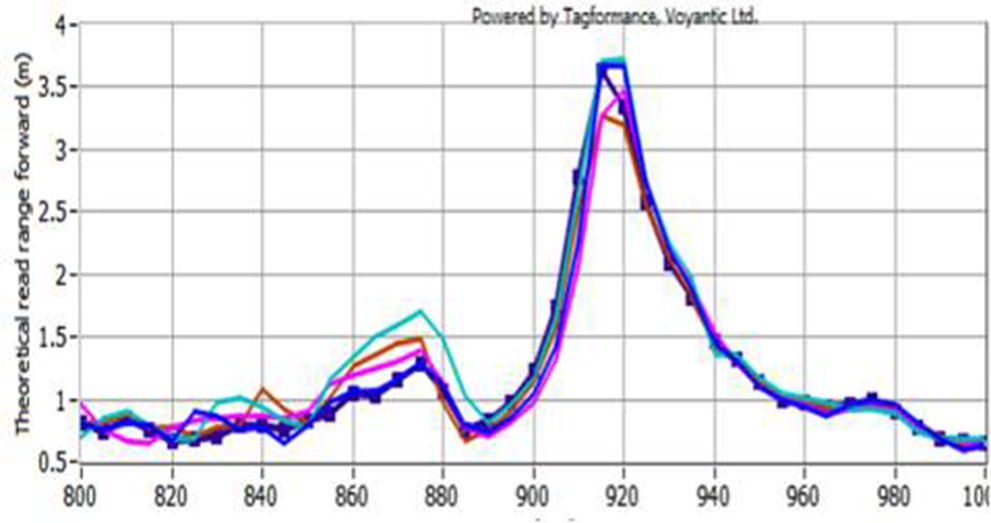

50*25mm UHF Flexible On-metal Sticker Reading Index :
Advantage :
Shenzhen ZhiJie IOT Application Co.,Ltd was exprienced rfid products manufacturers China since 2010 , we can help you to produce different kinds of frequency rfid products with 125KHz ,13.56MHz and 860-960MHz passive rfid chip . In our factory we have rfid card workshop , rfid label sticker workshop and some additional crafts card making department such as embossing , magnetic strip ,encoding , hot-stamping , barcode ,QC and laboratory testing department . Now we have more 12 sets flip-chip machines and winding antenna machines for meeting large quantities projects for you .Except RFID or NFC cards we also provide our customers keyfobs,high temperature resistant tags , metal card or tags .etc . Reliable and good faith are our business principle for worldwide customers .
Our advantage as below :
1:ISO size and controlled tollerance in card producing .
2:Excellent printing in plastic rfid card , rfid label or paper rfid cards .
3:Strictly in QC procedures and laboratory testing for keeping stablely feature of rfid products
4: Stablely production time and quanlity gurantee for you
5: RoHS certification and in-time response
Applications :
Our UHF flexible on metal sticker widely uses for metal container tracking , electrical equipment management ,metal assets management ,etc .
Additional Crafts for Cards :
Laser engrave barcode , seerial number ,encoding , etc .
Package & Shipping Term
We support customer requested shipping term and below specification package will our standard information for reference , final package will depend on certain quantities and size ,shape or another card crafts make right package and carton size . Customized package requested is available .
For shipping we support customers remote pick up goods from our factory with DHL ,UPS , TNT or FedEx collection corrier acfount or shipping with our cooperated agency forwarder is available .
Statement : Pictures above only show the product ,the intellectual property rights of the logo owned by their trademark .
