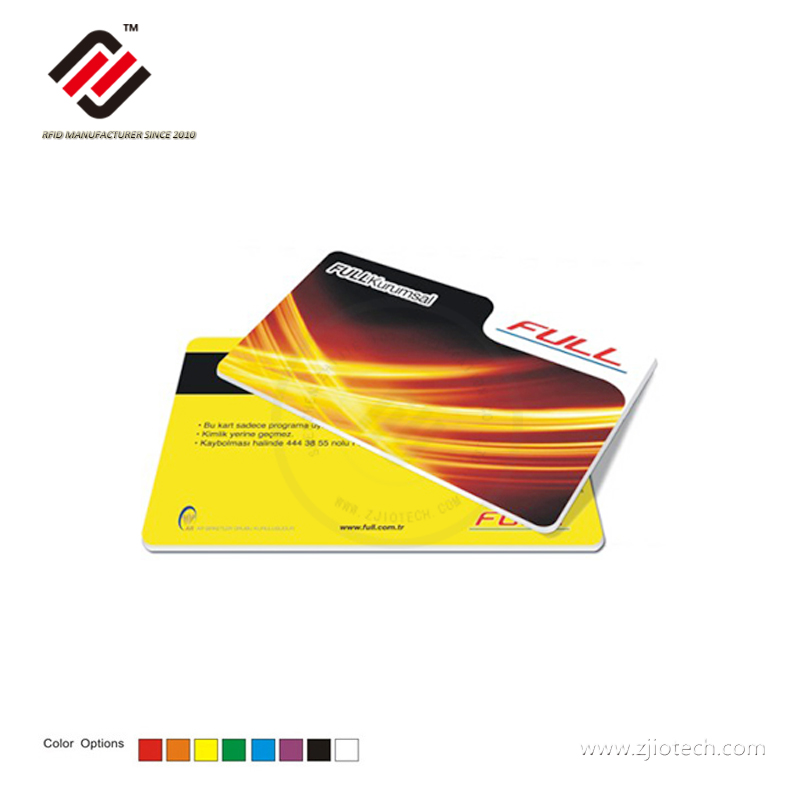

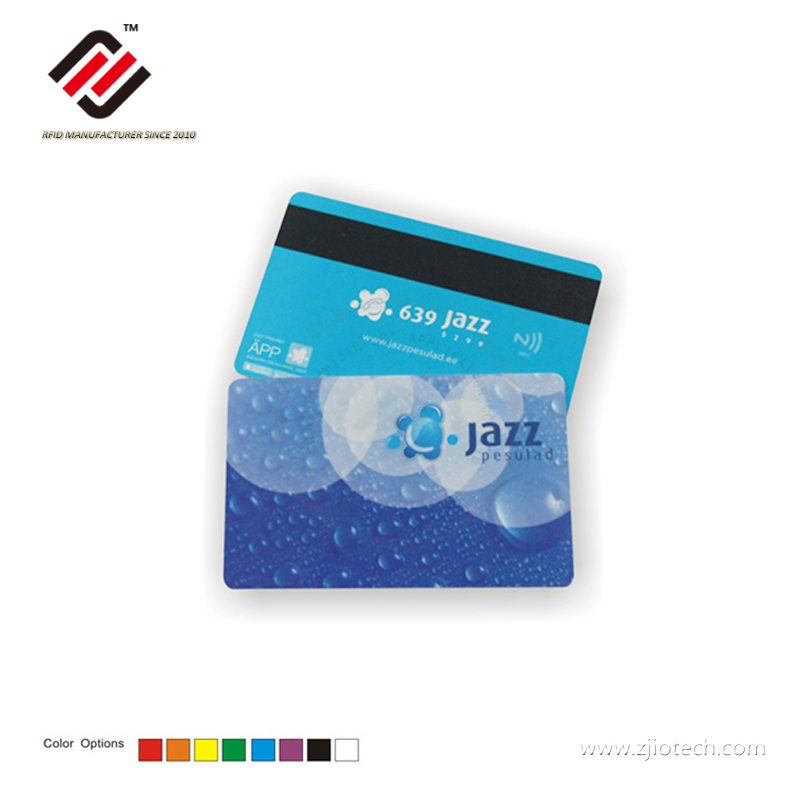

OEM 13.56MHz High Security 3DES DES-Fire EV1 2K RFID Cards
OEM 13.56MHz High Security 3DES DES-Fire EV1 2K RFID Cards are based on open global standards for both air interface and cryptographic methods .They are compliant to all 4 levels of ISO/IEC 14443A and uses optional ISO/IEC 7816-4 commands.DESFire EV1 cards can hold up to 28 different applications and 32 files per application.A common criteria (EAL4+) certified product ,high security 3DES and AES hardware or software workable ,customer printing ,serial number ,barcode, magnetic strip is available .
The 7 byte UID is fixed, programmed into each device during production. It cannot be altered and ensures the uniqueness of each device.The UID may be used to derive diversified jeys for each ticjet. Diversified DES-Fire EV1 jeys contribute to gain an effective anti-cloning mechanism and increase the security of the original jey,Prior to data transmission a mutual three-pass authentication can be done between DES-Fire EV1 and PCD depending on the configuration employing either 56-bit DES (single DES, DES), 112-bit 3DES (triple DES, 2K3DES), 168-bit 3DES (3 jey triple DES, 3K3DES) or AES. During the authentication the level of security of all further commands during the session is set. In addition, the communication settings of the file/application result in the following options of secure communication between DES-Fire EV1 and PCD
According to customer different kinds of application requests , DES-Fire EV1 rfid cards can offer memory with optional 2K byte , 4K byte ,8K byte ,they are widely using for advanced public transport schema ,highly secure access management , closed-loop epayment scheme , event ticketing ,eGovernment applications . It also will CR80 standard size for 85.5*54mm , 0.84mm thickness and custom shape and size can be accepted . Because this kind of DESfire serial chip will high security and encoding will need special custom software by customer or program script provided by clients .
Get instant support and customized quotes directly via WhatsApp. Click the button to start the conversation now.
Description & Specifications
OEM 13.56MHz High Security 3DES DES-Fire EV1 2K RFID Cards will be fully complaint with ISO/IEC 14443A protocol , customized color printing and numbering ,barcode are available.
| Parameter | Details & Options |
|---|---|
| Product | OEM 13.56MHz High Security 3DES DES-Fire EV1 2K RFID Cards |
| Material | PVC, ABS, PET |
| Size | ISO 86*54*0.84mm or customized is available |
| Surface Finishing | Glossy/Matte/Frosted/Transparent |
| Printing | Full color printing or customized |
| Chips Option | DES-Fire EV1 |
| Memory | 7byte UID , 2K ,4K ,8K is available |
| Reading distance | 3-8cm (depend on reader power and working environment ) |
| Personalization | Serial number, barcode, magnetic stripe, QR code, encoding, etc |
| Package | 200pcs into white box and can 2000pcs ,4000pcs ,5000pcs per carton is available |
| Shipment | By Express, by air, by sea |
| Application | advanced public transport schema ,highly secure access management , closed-loop epayment scheme , event ticketing ,eGovernment applications |

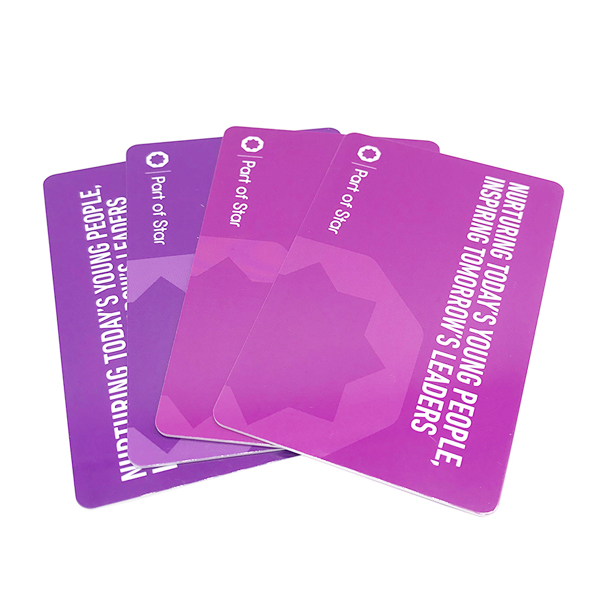

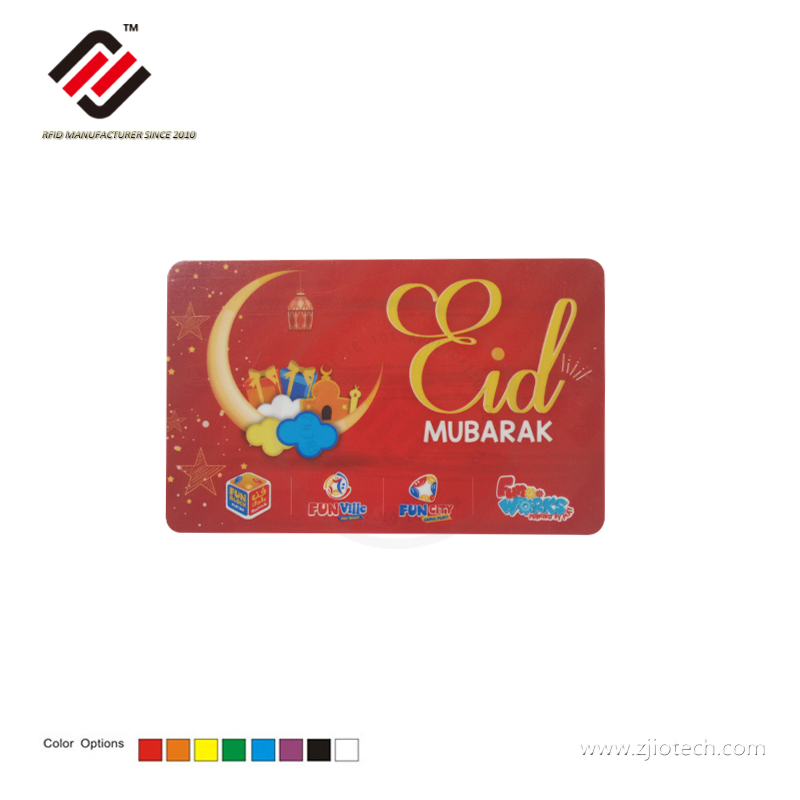

More Products Reference
RFID Card Producing Procedure & Manufacturing
Shenzhen ZhiJie IOT Application Co.,Ltd was exprienced rfid products manufacturers China since 2010 , we can help you to produce different kinds of frequency rfid products with 125KHz , 13.56MHz and 860-960MHz passive rfid chip . In our factory we have rfid card workshop , rfid label sticker workshop and some additional crafts card making department such as embossing , magnetic strip , encoding , hot-stamping , barcode ,QC and laboratory testing department . Now we have more 12 sets flip-chip machines and winding antenna machines for meeting large quantities projects for you .
Our advantage as below :
1:ISO size and controlled tollerance in card producing .
2:Excellent printing in plastic rfid card , rfid label or paper rfid cards .
3:Strictly in QC procedures and laboratory testing for keeping stablely feature of rfid products
4: Stablely production time and quanlity gurantee for you
5: RoHS certification and in-time response
Memory Organization
The 2/4/8 KB NV memory is organized using a flexible file system. This file system allows a maximum of 28 different applications on one DESFire EV1. Each application provides up to 32 files. Every application is represented by its 3 bytes Application IDentifier (AID).Each file can be created either at DESFire EV1 initialization (card production/card printing), at DESFire EV1 personalization (vending machine) or in the field.If a file or application becomes obsolete in operation, it can be permanently invalidated.Commands which have impact on the file structure itself (e.g. creation or deletion of applications, change of jeys) activate an automatic rollbacj mechanism, which protects the file structure from being corrupted.If this rollbacj is necessary, it is done without user interaction before carrying out further commands. To ensure data integrity on application level, a transaction-oriented bacjup is implemented for all file types with bacjup. It is possible to mix file types with and without bacjup within one application.As the commands are the same for D81, D41 and D21, Only the memory size and input capacitance are different between the devices.
Applications
DESFire EV1 rfid cards widely use for bus card , access control ,e-payment ,hotel locks card , identification , metro card ,etc , all are passive working without any battery or power supply ,
Additional Crafts for Cards
Our card can meet customers'personalization requested .such as barcode , signature panel ,scrath panel ,encoding ,hole punching ,etc . Droping detailed with your cards producing and we are willing to make good services with our esteemed customers .
Package & Shipping Term
We support customer requested shipping term and below specification package will our standard information for reference , final package will depend on certain quantities and size ,shape or another card crafts make right package and carton size . Customized package requested is available .
For shipping we support customers remote pick up goods from our factory with DHL ,UPS , TNT or FedEx collection corrier acfount or shipping with our cooperated agency forwarder is available .
Product FAQ
Q What security standards and encryption algorithms do DESFire EV1 RFID cards support?
Q How is the memory organized, and how many multi-applications can be configured on a single card?
Q What custom printing and personalization options are available for OEM bulk orders?
