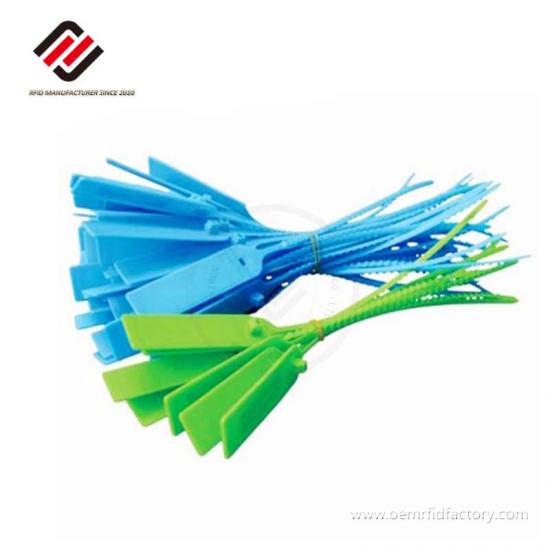

Product Name : Factory Price UHF RFID Waterproof RFID Seal Security Cable Tie Tag Container Smart Seal Tag
UHF RFID Waterproof RFID Seal Security Cable Tie Tag Container Smart Seal Tag is created for meeting different harsh out-door environment ,such as high-temperature , water , chemical etc . slim and endurable ABS materail with rfid technology make them widely use for tracking plants ,assets ,luggage ,gas cylinder , cloths .etc . Optional colors can meet different customers such as red ,yellow, green ,black ,white .etc . For meeting different working environment and applicatons ,they have many kinds of size for customers and customized size ,shape are available . Unique designing and insulation material can make rfid cable tie tag works for tracking electrical equipment . 13.56MHz ISO 14443A/B ,ISO 15693 and 18000-6C 860-960MHz rfid chips are available .
Description :
UHF RFID Waterproof RFID Seal Security Cable Tie Tag Container Smart Seal Tag will fully complain with Gen 2 Class 1 and ISO/IEC 18000-6C protocol . different kinds of uhf chips can chose according to customers projects applications ,besides 13.56MHz also can encapsulation with this tag .
|
Product |
UHF RFID Waterproof RFID Seal Security Cable Tie Tag Container Smart Seal Tag |
|
Material |
ABS ,PVC , Nylon |
|
Size |
448*4.8mm , 378*4.8mm , 528*4.8mm or customized |
|
Surface Finishing |
Smooth |
|
Printing |
Yello, black ,white ,green ,red ,etc |
|
Chips Option |
Alien H3 ,H4 , H9 , NXP Ucode 8 , ImpinJ Mozar 4 , Mozar 6/6P ,MIFARE® CLASSIC 1K , NTAG® 213/215/216 |
|
Memory |
512bits , 128bits .1K byte , 144byte ,504byte , 888 bytes ,etc |
|
Reading distance |
2-6 cm for HF and 2-3 metres for UHF (depend on reader power and working environment ) |
|
Personalization |
Serial number, barcode, encoding ,laser engraving , etc |
|
Package |
In oppbag, then in carton |
|
Shipment |
By Express, by air, by sea or customized shipping |
|
Application |
tracking for plants , electrical equipment , assets management , gas cylinder management ,container security ,etc |
More Size Options :
Cable Tie Tag Length Option
Total Length
(mm)
Width (mm)
Cable Tie Length(mm)
Max.Bundle Dia. (mm)
Min Loop Tensile
Strength
Regular
Color (Customized color is available and MOQ 50000pcs
order )
198
4.8
120
30
22.2
Black ,White
238
4.8
160
40
22.2
Black ,White
278
4.8
200
53
22.2
Black ,White
328
4.8
250
65
22.2
Black ,White
378
4.8
300
76
22.2
Black ,White
448
4.8
370
102
22.2
Black ,White ,Blue
,Yellow, Green
478
4.8
400
105
22.2
Black ,White
508
4.8
430
110
22.2
Black ,White
528
4.8
450
115
22.2
Black ,White
628
4.8
550
165
22.2
Black ,White
728
4.8
650
190
22.2
Black ,White
How to use rfid cable tie Tag:
Advantage :
Shenzhen ZhiJie IOT Application Co.,Ltd was exprienced rfid products manufacturers China since 2010 , we can help you to produce different kinds of frequency rfid products with 125KHz , 13.56MHz and 860-960MHz passive rfid chip . In our factory we have rfid card workshop , rfid label sticker workshop and some additional crafts card making department such as embossing , magnetic strip , encoding , hot-stamping , barcode ,QC and laboratory testing department . Now we have more 12 sets flip-chip machines and winding antenna machines for meeting large quantities projects for you .
Our advantage as below :
1:ISO size and controlled tollerance in card producing .
2:Excellent printing in plastic rfid card , rfid label or paper rfid cards .
3:Strictly in QC procedures and laboratory testing for keeping stablely feature of rfid products
4: Stablely production time and quanlity gurantee for you
5: RoHS certification and in-time response
Raw Material Process :
Applications :
UHF RFID Cable Tie Tags also widely use for identification management , assets management , logistic tracking ,etc .
Package & Shipping Term
We support customer requested shipping term and below specification package will our standard information for reference , final package will depend on certain quantities and size ,shape or another card crafts make right package and carton size . Customized package requested is available .
For shipping we support customers remote pick up goods from our factory with DHL ,UPS , TNT or FedEx collection corrier acfount or shipping with our cooperated agency forwarder is available .
Statement : Pictures above only show the product ,the intellectual property rights of the logo owned by their trademark .
