25mm Diameter ISO15693 I CODE SLIX NFC Coin Tag

Product Name : 25mm Diameter ISO15693 I Code SLIX  NFC Coin Tag

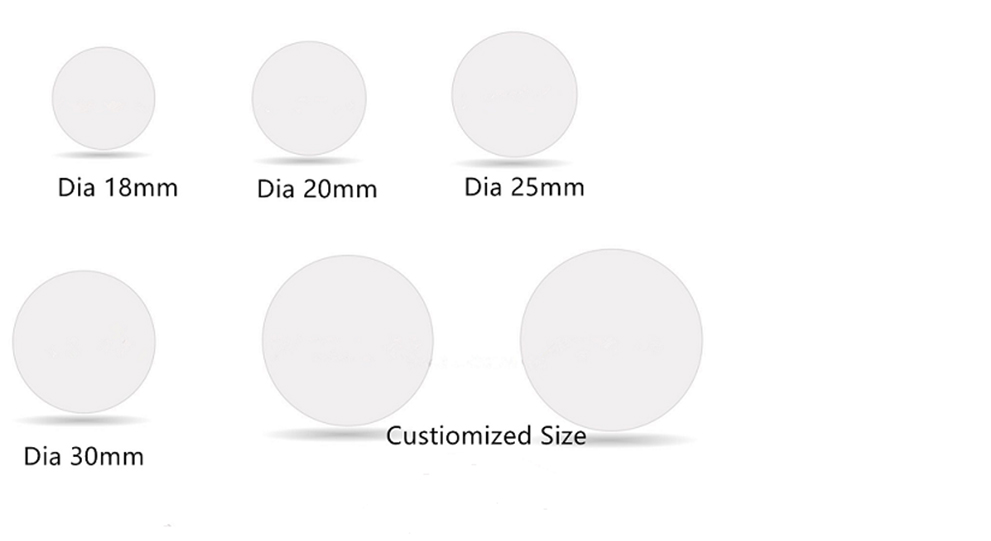

ISO 15693 I CODE@ SLIX NFC Coin Tag is 13.56MHz ISO15693 protocol rfid chip lamilated with hard pvc or pet material with optional adhesive backside. Durable material and lamination technology make them without any space can work under harsh out-door or water environment . I CODE SLIX rfid chip also follow 13.56MHz ISO/IEC15693 and ISO/IEC18000-3 can work with NFC technology in cashless ,control access，metro tags ,patrol tags ,identification ,library applications . circle shape and square shape or another customized shape ,size are available .

Description :

NFC coin tag will fully  complain with ISO/IEC 15693 and ISO/IEC 18000-3 protocol , customized color printing and numbering , encoding , barcode are available.

More Products Reference :

Advantage :

Shenzhen ZhiJie IOT Application Co.,Ltd was exprienced rfid products manufacturers China since 2010 ,  we can help you to produce different kinds of frequency rfid products with 125KHz , 13.56MHz and 860-960MHz passive rfid chip . In our factory we have rfid card workshop ,  rfid label sticker workshop and some additional crafts card making department such as embossing , magnetic strip , encoding , hot-stamping , barcode ,QC and laboratory testing department .  Now we have more 12 sets flip-chip machines and winding antenna machines for meeting large quantities projects for you . Except RFID or NFC cards we also provide our customers keyfobs,high temperature resistant tags , metal card or tags .etc . Reliable and good faith are our business principle for worldwide customers .

Our advantage as below :

1:ISO size and controlled tollerance in card producing .

2:Excellent printing in plastic rfid card , rfid label or paper rfid cards .

3:Strictly in QC procedures and laboratory testing for keeping stablely feature of rfid products

4: Stablely production time and quanlity gurantee for you

5: RoHS certification and in-time response

Memory organization

The 1024 bit EEPROM memory is divided into 32 blocks. A block is the smallest access  unit. Each block consists of 4 bytes (1 block = 32 bits). Bit 0 in each byte represents the  least significant bit (LSB) and bit 7 the most significant bit (MSB), respectively.

The memory is divided into 2 parts:

Configuration area

Within this part of the memory all required information is stored, such as UID, write  protection, access control information, passwords, AFI and EAS. This memory area  cannot be directly accessed.

User memory

Within the 896 bit memory area the user data are stored. Direct read/write access to  this part of the memory is possible depending on the related write protection conditions.

Blocks 0 to 27 can be addressed with read and write commands only.

Optional RFID Chips Reference :

Applications :

NFC coin tags also widely use for bus card , access control ,e-payment ,hotel locks card , identification , metro card ,etc , all are passive working without any battery or power supply ,

Additional Crafts for Cards :

Package & Shipping Term

We support customer requested shipping term and below specification package will our standard information for reference , final package will depend on certain quantities and size ,shape or another card crafts make right  package and carton size .  Customized package requested is available .

For shipping we support customers remote pick up goods from our factory with DHL ,UPS , TNT or FedEx collection corrier acfount or shipping with our cooperated agency forwarder is available .

Statement : Pictures above only show the product ,the intellectual property rights of the logo owned by their trademark .
